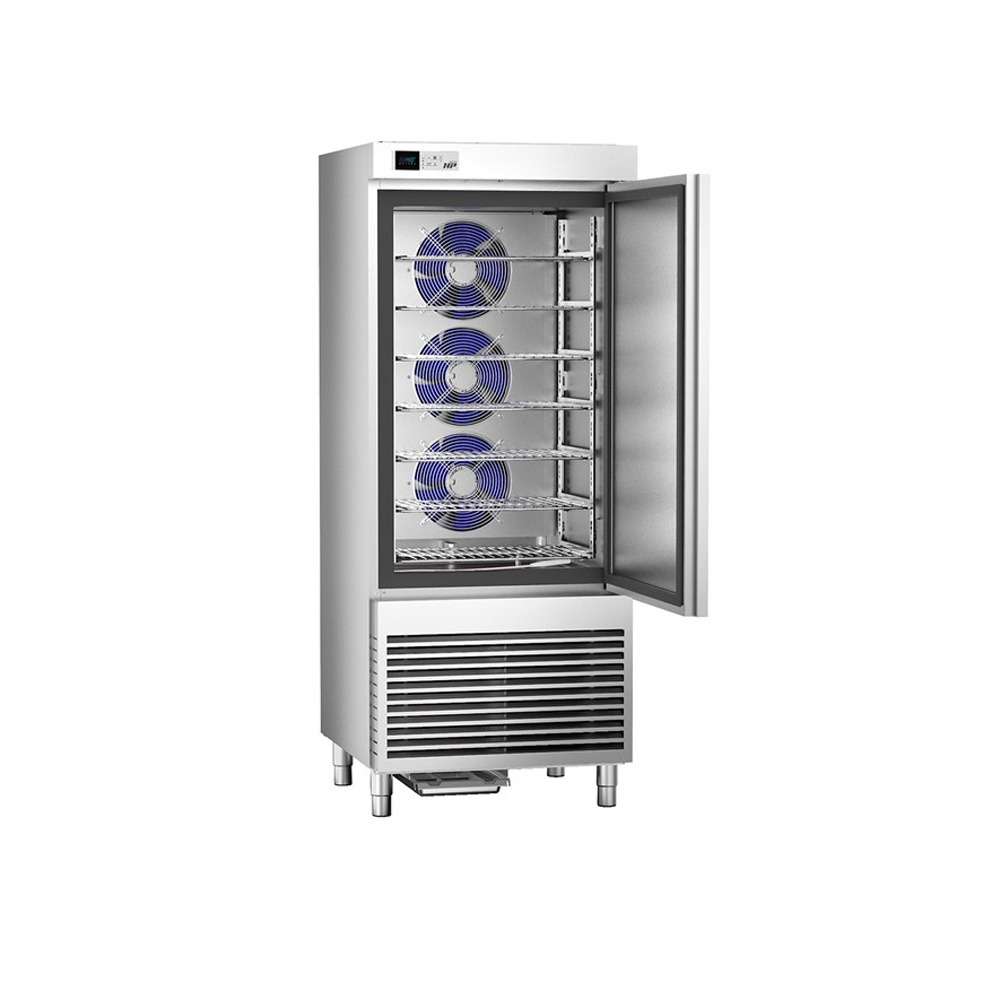

Thermal shock freezer - bakery, 12 trays, 80x93x200 cm, model JFS171L

Description

For this product, you benefit from up to 6 interest-free instalments, depending on your financial analysis. Simple and fast financing, adapted to your business!

To access this option, please contact our sales agents on 0268 331 133 or mention in the Remarks box that you wish to purchase in instalments.

Description:

• The exterior and interior sturdiness is constructed in one piece completely from AISI 304 stainless steel;
• Non-slipinner base with drain hole;
• Insulation thickness: 75 mm;
• Internal structure features AISI 304 stainless steel tray supports with 33 positions spaced at 30 mm (17 pcs. 60x40x4h cm);
• Evaporator made of copper/aluminium and anti-corrosion treated;
• Legs made of AISI 304 stainless steel, adjustable in height (102 ÷ 164 mm)
• Electronic control with segment display, optical and acoustic alerts, RS485 port, APOLINK connectivity. Functions include rapid cooling and freezing, timed and/or probe sensing, HARD or SOFT mode.

Technical features:

• Internal size: 80x93x200 cm
• Gross weight: 270 kg
• Rapid cooling capacity from +90°C to +3°C (kg) at core, 70 kg in 90 minutes;
• Quick freezing capacity from +90°C to -18°C (kg) at product core, 38 kg in 240 minutes;
• Rapid chilling capacity from +65°C to +10°C (kg) at product core, 70 kg - EN 22042* test
• Rapid freezing capacity from +65°C to -18°C (kg) at product core, 38 kg - EN 22042* test
• Energy consumption: 0.08 kWh/kg (cooling) - 0.25 kWh/kg (freezing)
• Consumption measurement method: EN 22042
• Climate class: 5 (+40°C, 40% R.H.), tropicalised
• Refrigerant/GWP: R290/3
• Thermostaticvalves;
• Condensing: air - forced ventilation not directed to food - integrated cooling unit;
• Defrosting is done manually by air;
• Cooling capacity at -23.3°C (W): 1317
• Frequency/voltage: 400V 3N~ / 50Hz
• Electrical power : 2,5 kW
• Capacity - 12 trays
