Thermal shock freezer - bakery, 12 trays, 80 x 93 x 186 cm, model JFS101L

Description

For this product, you benefit from up to 6 interest-free instalments, depending on your financial analysis. Simple and fast financing, adapted to your business!

To access this option, please contact our sales agents on 0268 331 133 or mention in the Remarks box that you wish to purchase in instalments.

Description:

• The exterior and interior sturcutra is monobloc constructed completely from AISI 304 stainless steel;
• Inner base: diamond treated, with drain hole;
• Insulation thickness: 75 mm;

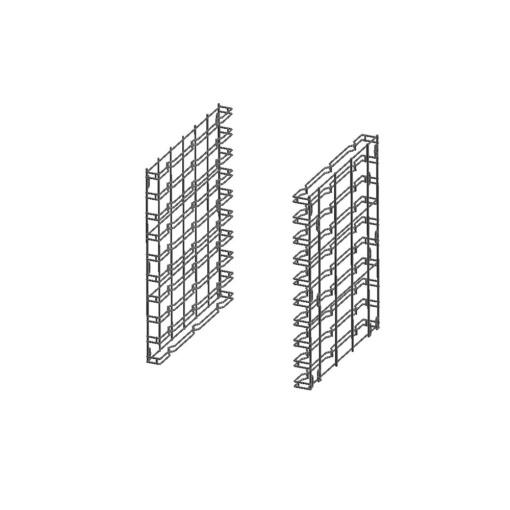

• Internal structure features AISI 304 stainless steel AISI 304 grill supports with 22 positions spaced at 30 mm (12 trays 60x40x4h cm);
• Evaporator made of copper/aluminium and anti-corrosion treated;
• Legs made of AISI 304 stainless steel, adjustable in height (102 ÷ 164 mm)
• Electroniccontrol with segment display, optical and acoustic alerts, RS485 port, APOLINK connectivity for remote control. Functions include rapid cooling and freezing, timed and/or probe sensing, HARD or SOFT mode.

Technical characteristics:

• Internal size: 80 x 93 x 186 cm
• Gross weight: 200 kg
• Rapid cooling capacity from +90°C to +3°C (kg) at core, 45 kg in 90 minutes;
• Blast freezing capacity from +90°C to -18°C (kg) at product core, 28 kg in 240 minutes;
• Rapid chilling capacity from +65°C to +10°C (kg) at product core, 45 kg - EN 22042* test
• Blast freezing capacity from +65°C to -18°C (kg) at product core, 28 kg - EN 22042* test
• Energy consumption: 0.08 kWh/kg (cooling) - 0.28 kWh/kg (freezing)
• Consumption measurement method: EN 22042
• Climate class: 5 (+40°C, 40% R.H.), tropicalised
• Refrigerant/GWP: R290/3
• Thermostaticvalves;
• Condensing: air - forced ventilation not directed to food - integrated cooling unit;
• Defrosting is done manually by air;
• Cooling capacity at -23.3°C (W): 935
• Frequency/voltage: 400V 3N~ / 50Hz
• Electrical power : 1,9 kW
• Capacity - 12 trays
