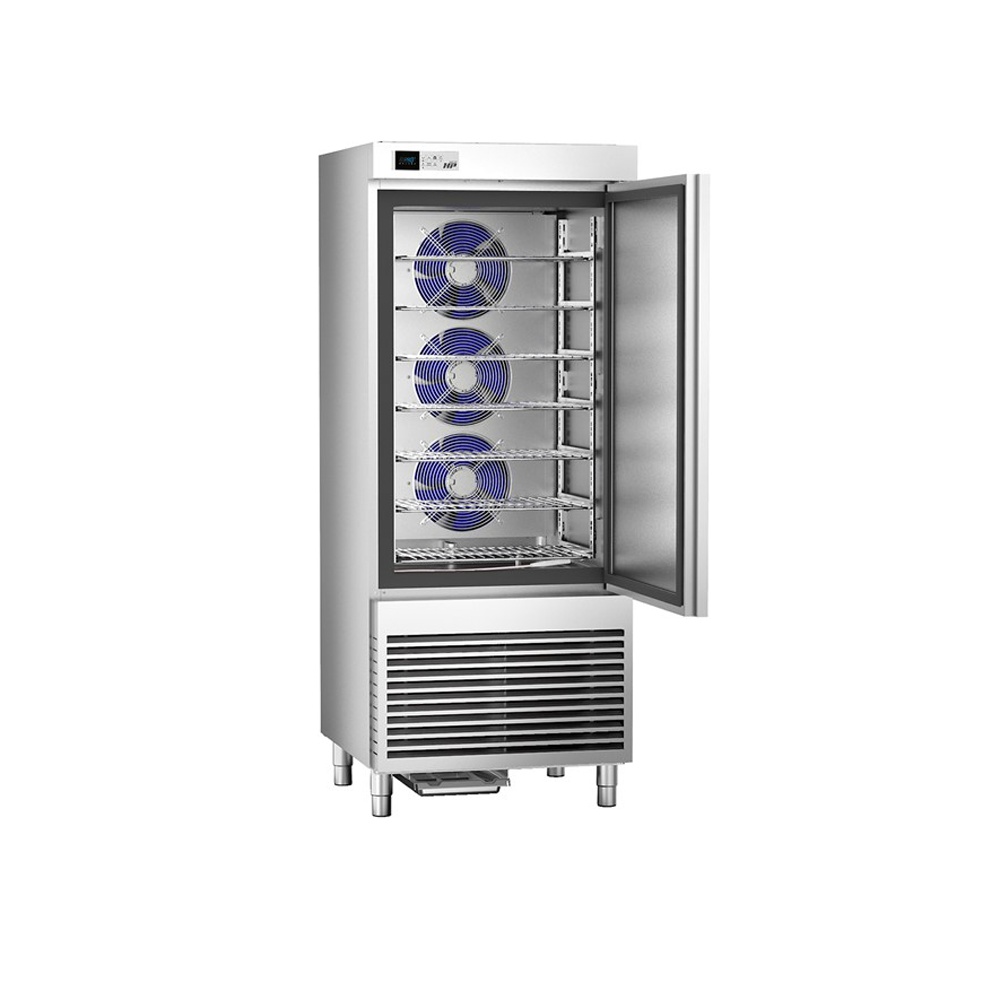

Thermal shock freezer -9°C/-18°C, 80x93x200 cm, model HPC171L

Description

For this product, you benefit from up to 6 interest-free instalments, depending on your financial analysis. Simple and fast financing, adapted to your business!

To access this option, please contact our sales agents on 0268 331 133 or mention in the Remarks box that you wish to purchase in instalments.

Description:

• The exterior and interior Sturcutra is constructed in one piece completely from AISI 304 stainless steel;
• Diamond treatedinner base with drain hole;
• Insulation thickness: 75 mm;
• Worktop 80 mm high, made of AISI 304 stainless steel with front control panel;
• Internal structure features "crémaillères" supports in AISI 304 stainless steel:

- 6 positions spaced 180 mm apart (18 pcs. 36x16.5x12 cm or 12 pcs. 36x25x12 cm);

- 3 positions spaced at 360 mm (18 freezing GNs Ø20x25 cm).

• Evaporator made of copper/aluminium and anti-corrosion treated;
• Legs made of AISI 304 stainless steel, adjustable in height (102 ÷ 164 mm);
• Control by electronic board with segment display, RS485 port and optical and acoustic alarms, it has Industry 4.0 (APOLINK) connectivity, Soft/Hard blast freezing functions with time or probe detection, pre-cooling to -25°C and automatic switch to holding mode at the end of the cycle;
• Standard equipment: - 17 pairs of guides, 60x40 cm, AISI 304 stainless steel;

- Water collection tray, plastic, placed under the outer base;

- Core probe: one point.

Technical data:

• Internal size: 80x93x200 cm
• Gross weight: 270kg
• Yield from -9°C to -18°C: 38kg in 70/90 minutes;
• Energy consumption: 0.08 kWh/kg (cooling) - 0.25 kWh/kg (freezing);
• Consumption measurement method: EN 22042
• Climate class: 5 (+40°C, 40% R.H.), tropicalised
• Refrigerant/GWP: R290/3
• Thermostaticvalves;
• Condensing: air - forced ventilation not directed to food - integrated cooling unit;
• Defrosting is done manually by air;
• Cooling capacity at -23.3°C (W): 1317
• Frequency/voltage: 400V 3N ~ 50 ÷ 60 Hz
• Electrical power : 2,5 kW
