Portioning guitar Horizontal with 1 grid - without grids dotare

Description

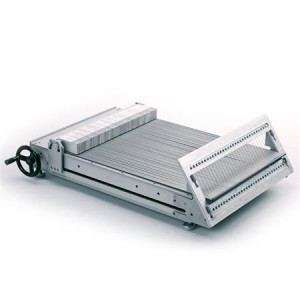

Chitara - Horizontal portioning device with 1 cutting grid.

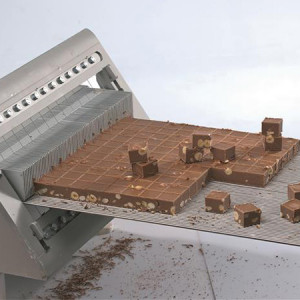

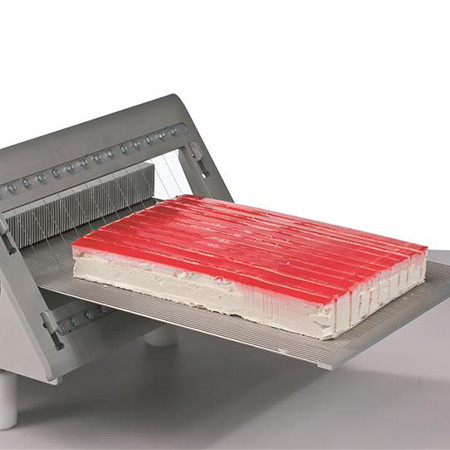

Simple and fast in use, the device is designed for accurate portioning of various types of products: Ganache, Cremino, Marzipan, semifreddo products, products with cream and other added fillings.
Thanks to the use of cutting grids with short wires, with a higher mechanical resistance, this device can also portion products with high hardness or even frozen products.

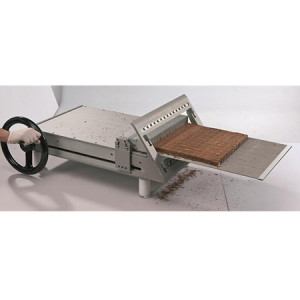

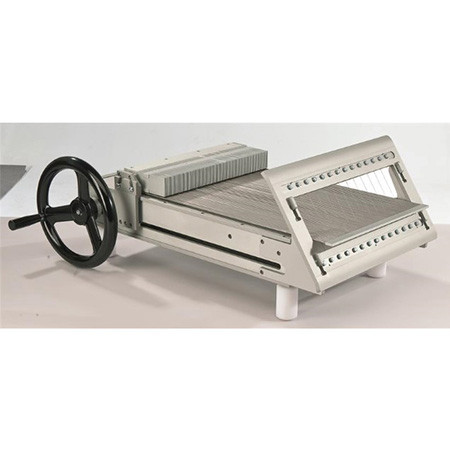

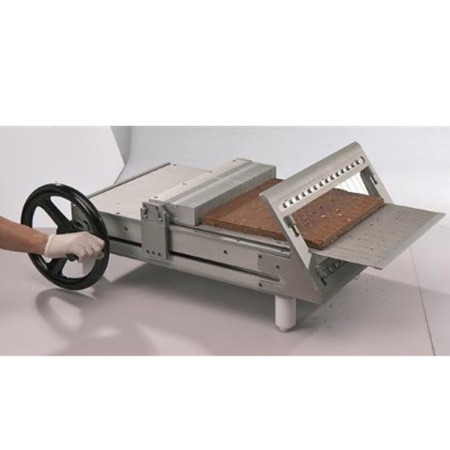

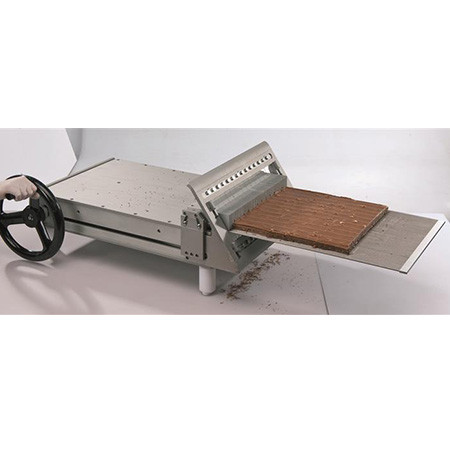

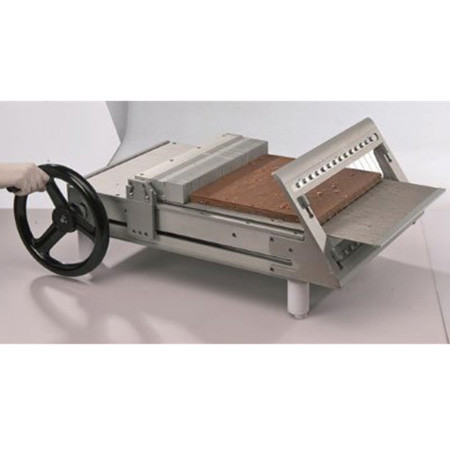

Portioning with this device is realised by manually operating a handwheel that pushes the work surface, which supports the product, towards the cutting grid.
Device dimensions:
- closed: 73 x 103 x h 30 cm
- open: 73 x 167 x h 30 cm
Useful size of the cutting plane: 60 x 60cm
Width of the cut pieces: 1; 1.5; 2; 2.5; 3; 3.5; 4; 5 and 6 cm, depending on the cutting grids used.
The device contains and is delivered with:
- Device base;

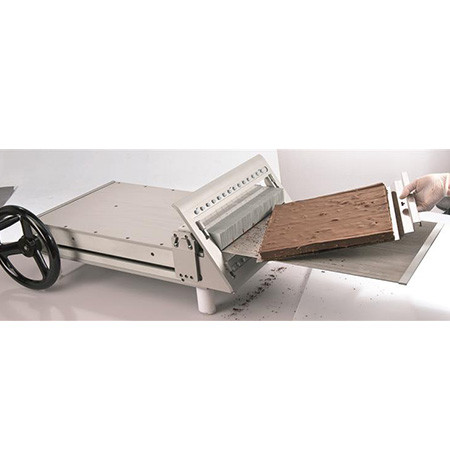

- 1 Stainless steel plate for product handling;
- 1 Plastic scraper;

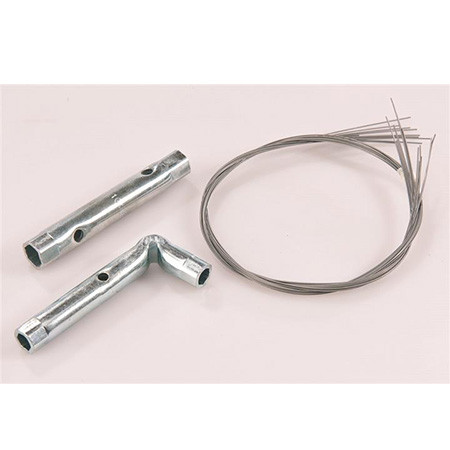

- 2 Wrenches for replacing/fixing the cutting wires.
Thecutting gridsare made of stainless steel and are purchased separately - see Options!
The system of fixing the grids on the device favours a quick and easy mounting/removal.
Advantages:
Cleaning is simple and quick.
No maintenance operations.
Ideal for confectionery laboratories, restaurants, ice-cream parlours, chocolate shops.
Dispozitivul Poate fi utilizat si la portionarea produselor cu duritate mare sau a celor congelate!
Optionale:
Grile portionare :
- cod.Produs: CSM06001- Grila taiere standard, latime bucati taiate: 1 cm;

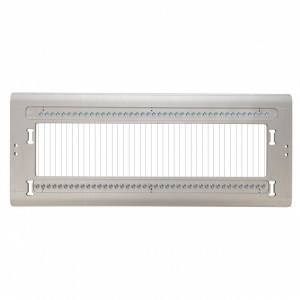

- cod.Produs: CSM06002- Grila taiere standard, latime bucati taiate: 1,5 cm;
- cod.Product: CSM06003- Standard cutting grid, width of cut pieces: 2 cm;
- cod.Product: CSM06004- Standard cutting grid, width of cut pieces: 2,5 cm;
- cod.Product: CSM06005- Standard cutting grid, width cut pieces: 3 cm;
- cod.Product: CSM06006- Standard cutting grid, width cut pieces: 3,5 cm;
- cod.Product code: CSM06007- Standard cutting grid, width cut pieces: 4 cm;
- Product code: CSM06008- Standard cutting grid, width cut pieces: 5 cm;
- Product code: CSM06009- Standard cutting grid, width cut pieces: 6 cm;
The following components and accessories can be supplied on request:- Product code: CSM0602 - Stainless steel plate;
- Product code: CSMSPB60 - Plastic scraper;
- Product code: CHITRIC8 - 2 Wrenches - replacement/fixing of cutting wires;
- Product code: CHITRIC9 - Stainless steel wire 0,6 mm thick for cutting grid.
