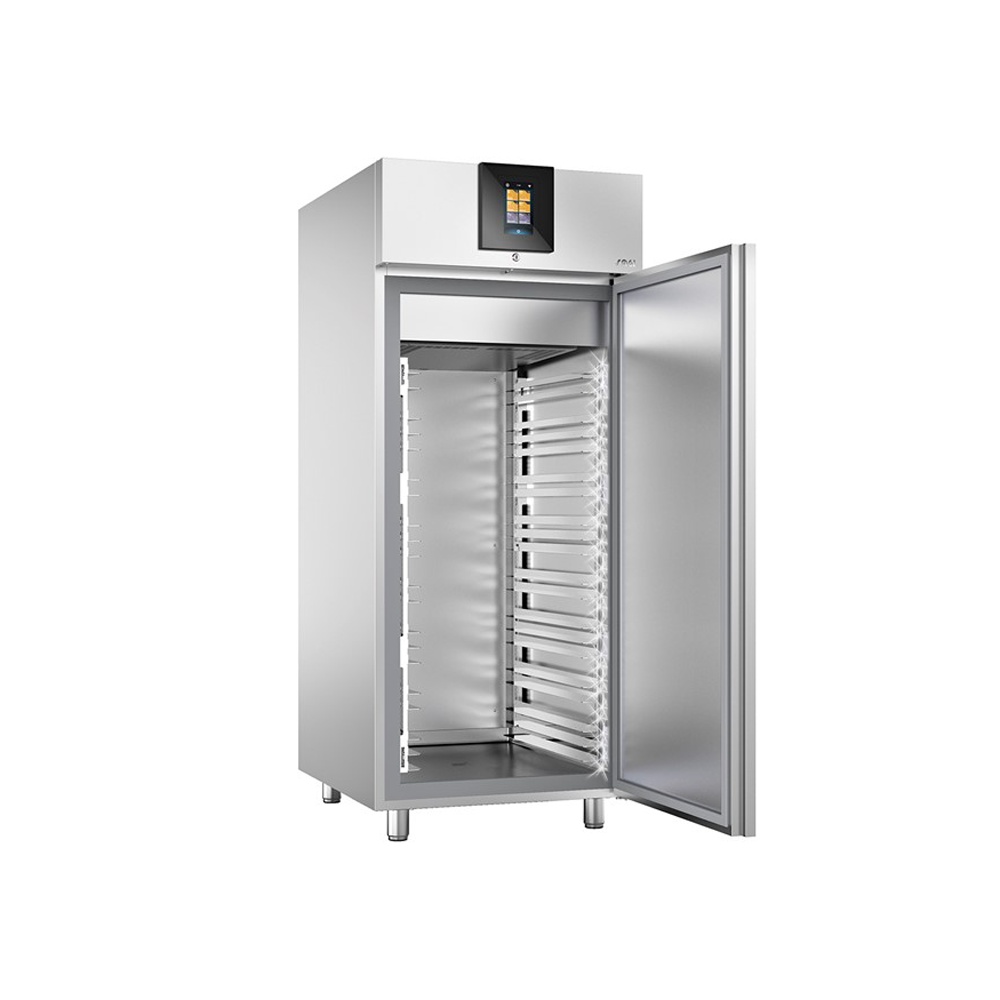

Cupboard for controlled refrigeration - Cupboards - bakery, -18 / +35°C, 82x101,5x204 cm, model KAF2B

Description

For this product, you benefit from up to 6 interest-free instalments, depending on your financial analysis. Simple and fast financing, adapted to your business!

To access this option, please contact our sales agents on 0268 331 331 133 or mention in the Remarks box that you wish to purchase in instalments.

Technical features:

• The interior and exterior structure is monobloc, made of AISI 304 stainless steel, with rounded interior corners;
• Internal base in stainless steel with diamond finish and drain hole;
• Insulation thickness: 75 mm;
• Standard direction of opening: Right (reversible on assembly), with self-closing system for angles under 90°;
• Internal structure: AISI 304 stainless steel AISI 304 stainless steel grille support, air distribution panel for uniform air flow;
• Number of positions / spacing: 80/15 - 27/45 - 20/60 mm;
• The evaporator is positioned inside the compartment, with anti-corrosive treatment;
• Safety switch: Yes, for switching off the internal fan and switching on the LED bar;
• Legs: AISI 304 stainless steel, height adjustable (105 - 155 mm);
• Standard equipment: 20 pairs in AISI 304 stainless steel;
• Tray dimensions: EN 60x80 cm

Technical data:

• Temperature range: -20 /+45 °C
• Net usable volume: 583 litres
• Climate class: 5 (+40°C, 40% relative humidity)
• Humidity regulation range: 40% - 100% (with humidifier included);
• Intensive use: The equipment is intended for use in ambient temperatures up to 40°C;
• Refrigerant / GWP: R290 / 3;
• Refrigerant quantity: 0,110 kg
• Noise level LWA: 61 dB(A)
• Cooling system is realised by ventilated cooling;
• Defrosting is realised automatically by hot gas;
• Condensate evaporation is automatic;
• Fan control: 20% - 100% (5 speed steps);
• Water connection;
• Cooling capacity at -23,3°C: 935 W
• Water consumption: maximum 0.5 (l/h)
• Heating power: 700 W
• Frequency / voltage: 230V 1N~ / 50Hz
• Maximum electrical power: 0,85 Kw
• Net dimensions: 82 x 105,65 x 204h cm
• Gross weight: 195 kg

Control and functions:

• Control type: electronic board - USB - RS485 communication port;
• 7" colour touch screen display;
• Compatible with APOLINK accessory for remote control - Industry 4.0;
• Optical and acoustic alerts;
• Functions/programmes: dosing, controlled dosing, conservation.
• Favourite programmes: personalised up to 50;
• Available languages: IT, EN, ES, ES, DE, FR, NL, DK, PT, PLK;
• HACCP data storage: up to 99 cycles - downloadable on USB stick, with over one year of history;
• Alerts stored: up to 40 events;
• Automatic mode: Steps follow automatically - locking, preservation, reactivation, fermentation and holding;
• Manual mode: Stages can be activated individually as required;
• Illumination: Full-height LED lighting;

Nova Pan, a company with over 24 years of experience in professional solutions for milling, bakery, pastry and confectionery, offers you, through its brand, Cofetarul Istet, assembly, technical assistance, call service and maintenance services for the equipment purchased. Contact the Nova Pan technical team with confidence!
