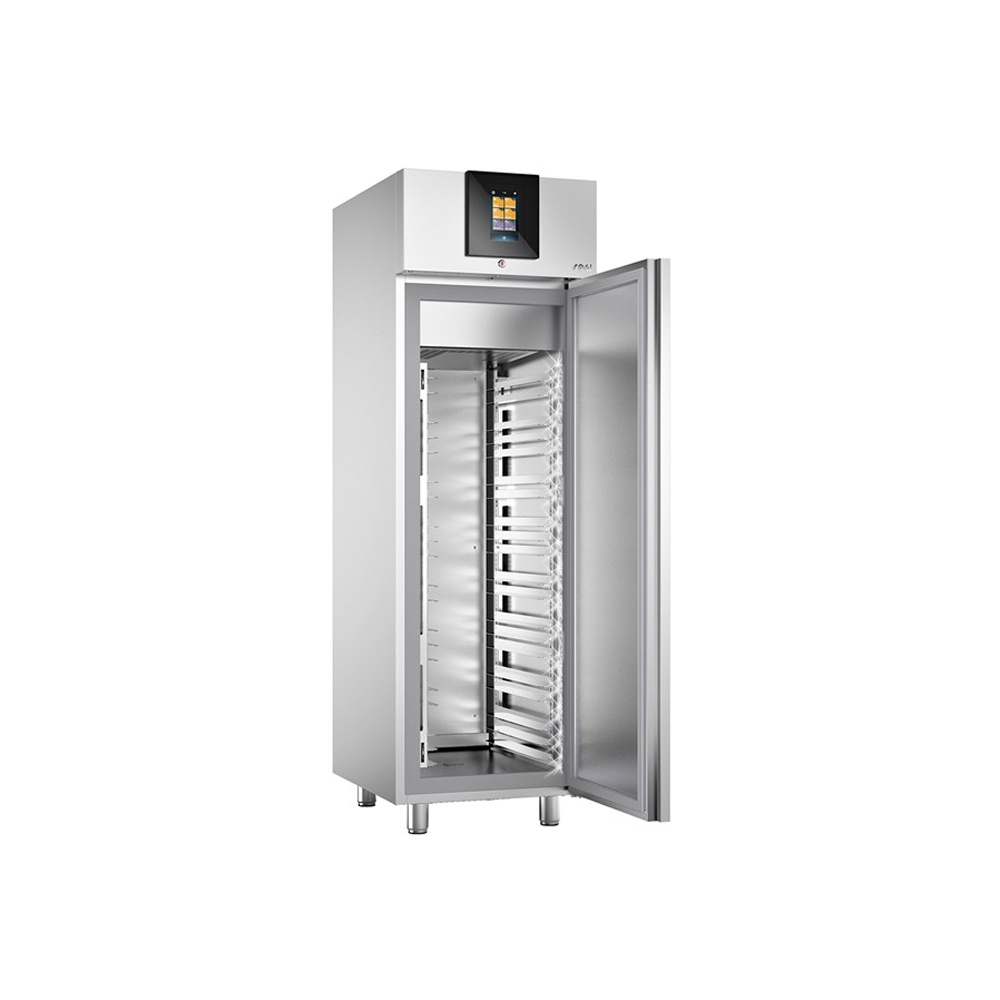

Cabinet for controlled dispensing and freezing, for pastries and bakery products, -20/+45°C, 62x85,65x204 cm, model KAF1BHC

Description

For this product, you benefit from up to 6 interest-free instalments, depending on your financial analysis. Simple and fast financing, adapted to your business!

To access this option, please contact our sales agents on 0268 331 331 133 or mention in the Remarks box that you wish to purchase in instalments.

Technical features:

• The interior and exterior structure is monobloc, made of AISI 304 stainless steel, with rounded interior corners;
• Internal base in stainless steel with diamond finish and drain hole;
• Insulation thickness: 75 mm;
• Standard direction of opening: Right (reversible on assembly), with self-closing system for angles under 90°;
• Internal structure: AISI 304 stainless steel AISI 304 stainless steel louvre support; air distribution panel for uniform air flow;
• Number of positions / spacing: 80/15 - 27/45 - 20/60 mm;
• The evaporator is positioned inside the compartment, with anti-corrosive treatment;
• Safety switch: Yes, to switch off the internal fan and switch on the LED bar;
• Legs: AISI 304 stainless steel, height adjustable (105 - 155 mm);
• Standard equipment: 20 pairs in AISI 304 stainless steel;
• Tray dimensions: EN 60x40 cm

Technical data:

• Temperature range: -20 /+45 °C
• Net usable volume: 291 litres
• Climate class: 5 (+40°C, 40% relative humidity)
• Humidity regulation range: 40% - 100% (with humidifier included);
• Intensive use: The equipment is intended for use at ambient temperatures up to 40°C;
• Refrigerant / GWP: R290 / 3;
• Refrigerant quantity: 0,08 kg
• Noise level LWA: 48 dB(A)
• Cooling system is realised by ventilated cooling;
• Defrosting is realised automatically by hot gas;
• Condensate evaporation is automatic;
• Fan control: 20% - 100% (5 speed steps);
• Water connection;
• Cooling capacity at -23.3°C: 610 W
• Water consumption: maximum 0.5 (l/h)
• Heating power: 400 W
• Frequency / voltage: 230V 1N~ / 50Hz
• Maximum electrical power: 0,75 Kw
• Net dimensions: 62 x 85,65 x 204h cm
• Gross weight: 150 kg

Control and functions:

• Control type: electronic board - USB - RS485 communication port;
• 7" colour touch screendisplay;
• Compatible with APOLINK accessory for remote control - Industry 4.0;
• Optical and acoustic alerts;
• Functions/programmes: dosing, delayed dosing, conservation. Automatic recommended and favourite programmes;
• Favourite programmes: personalised up to 50;
• Available languages: IT, EN, ES, ES, DE, FR, NL, DK, PT, PLK;
• HACCP data storage: up to 99 cycles - downloadable on USB stick, with over one year of history;
• Alerts stored: up to 40 events;
• Automatic mode: Steps follow automatically - locking, preservation, reactivation, fermentation and holding;
• Manual mode: Stages can be activated individually as required;
• Illumination: Full-height LED lighting;
