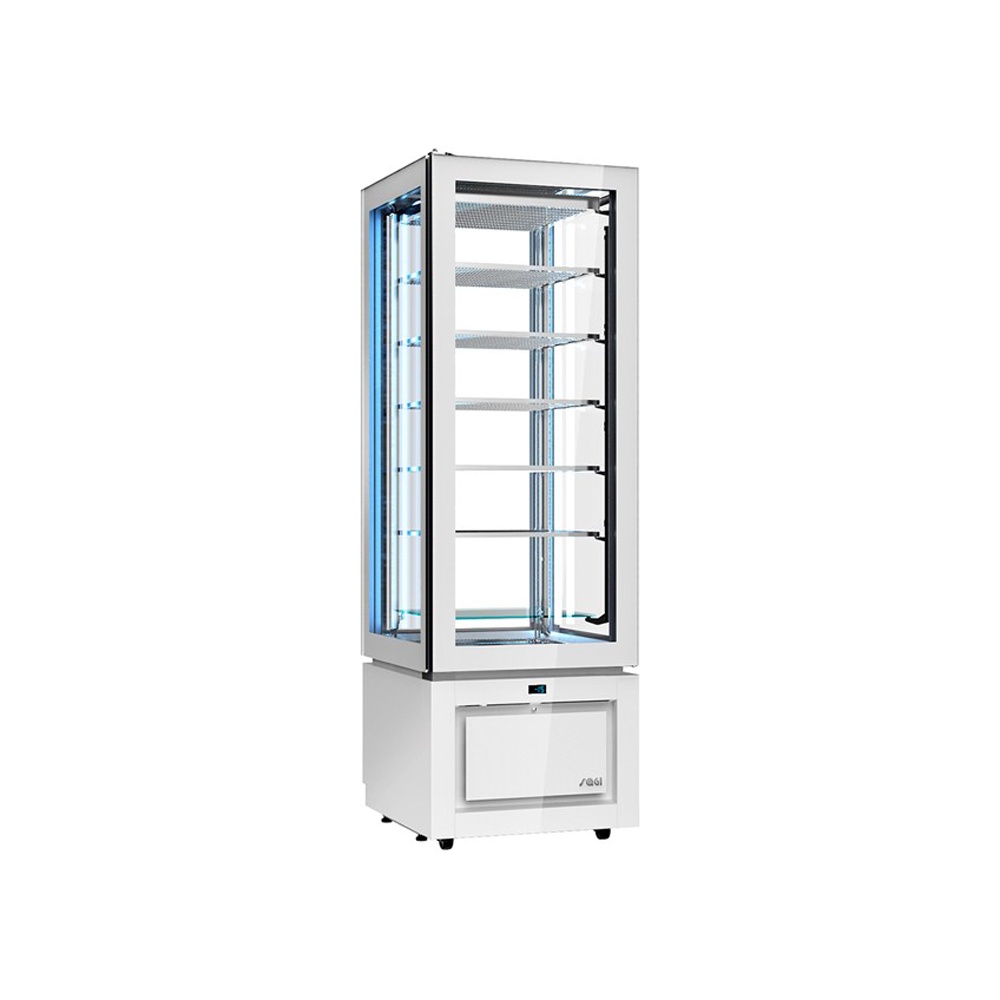

Vertical refrigerated display cabinet, -25 / -15°C, 60x64.5x184 cm, Luxor Slim White, KG6VSX

Description

For this product, you benefit from up to 6 interest-free instalments, depending on your financial analysis. Simple and fast financing, adapted to your business!

To access this option, please contact our sales agents on 0268 331 133 or mention in the Remarks box that you wish to purchase in instalments.

Description:

• The display surface is made entirely of white (RAL 9010) screen-printed toughened glass (RAL 9010) with anti-condensation heating element;
• Lower structure: RAL 9010 colour finish;
• Internal structure: shelves supported by AISI 304 stainless steel frame;
• Internal base includes a condensation drain hole;
• LED lighting: high light intensity, anti-glare, with the possibility to change the type of light;
• Door opening direction: standard left, non-reversible on site;
• The evaporator is static, the evaporation process is carried out through the grid;
• Legs: 4 integrated wheels, masked by the structure;
• Electronic control with blue digital display, HACCP optical and acoustic alarms, APOLINK connectivity for remote control (Industry 4.0) and PIR Sense sensor that changes light intensity when approaching customers;
• Standard equipment: 5 evaporating grids+1 pulley, dimensions 45x46 (evaporating grids) + 45x42 (pulley).

Technical data:

• Internal size: 60x64,5x184 cm
• Gross weight: 224 kg
• Temperature range: -25 / -15°C
• Relative humidity 75%
• Energy efficiency class: C
• Annual energy consumption: 5868 kWh/year
• Energy consumption measurement method: EN 23953
• Climate class: 5 (+40°C, 40% R.H.)
• Gross volume: 324l
• Refrigerant/GWP: R290/3
• Cooling system is realised by static refrigeration;
• Defrosting is realised manually, by stopping;
• Condensate evaporates automatically;
• Refrigerating capacity at -23.3°C W: 931
• Frequency/voltage: 230V 1N~ / 50Hz
• Electrical power : 0,88 KW

Description:

• The exterior and interior sturdiness is constructed in one piece completely in AISI 304 stainless steel;
• Anti-slipinner base with drain hole;
• Insulation thickness: 75 mm;
• Internal structure features AISI 304 stainless steel tray supports with 9 positions spaced at 150 mm (54 pcs. 36x16,5x12 cm);
• Evaporator positioned outside the compartment;
• Legs made of stainless steel AISI 304, 4 swivelling castors, 2 with brake, height 130 mm;
• Electroniccontrol panel with digital display, optical and acoustic alarms, connection with APOLINK accessory for remote control - Industry 4.0. Hyper Cold function included;
• Standard equipment: 6 pairs of AISI 304 stainless steel guides.

Technical data:

• Internal size: 210x72,5x72,5x83 cm
• Gross weight: 138 kg
• Temperature range: -24/-12°C
• Energy class: D
• Energy consumption: 8,11 kWh/24h
• Consumption measurement method: EN 22041
• Energy efficiency index: 71.8
• Net/gross usable volume: 538/682l
• Climate class: 5 (+40°C, 40% R.H.), tropicalised
• Heavy duty: appliance designed for use in ambient temperatures up to 40°C;
• Refrigerant/GWP: R290/3
• Cooling system: ventilated;
• Automatic, intelligent, hot gas defrost, which is activated only when required;
• Automatic condensate evaporation;
• Cooling capacity at -23.3°C: 935W
• Frequency/voltage: 230V 1N~ / 50Hz
• Electrical power: 1,1 kW
