Single-phase aspirator for liquid suction

Description

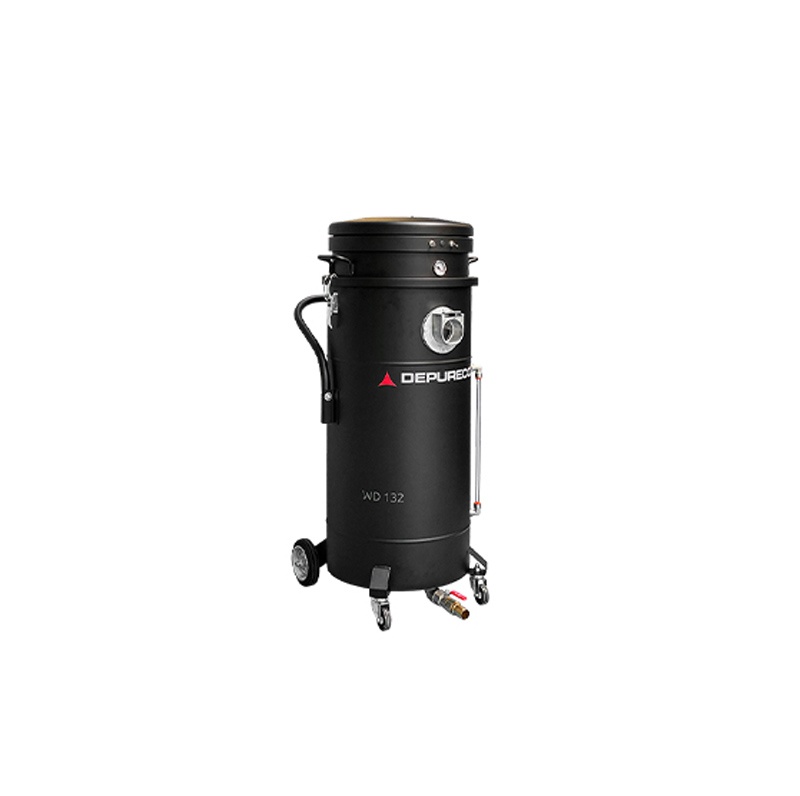

The WD 132 is a powerful and versatile industrial vacuum cleaner, equipped with high performance single phase motors. Designed for vacuuming large quantities of liquids mixed with solids, it is equipped with an interchangeable dual filtration system for liquids or solids. A practical manual valve allows easy discharge of the aspirated liquid. Also available with submersible pump for automatic liquid evacuation and simultaneous suction/evacuation.

Technical details :

• Single-phase motor 2 x By-Pass; 2 motors controlled by independent switches
• Liquid collection capacity of 130 litres

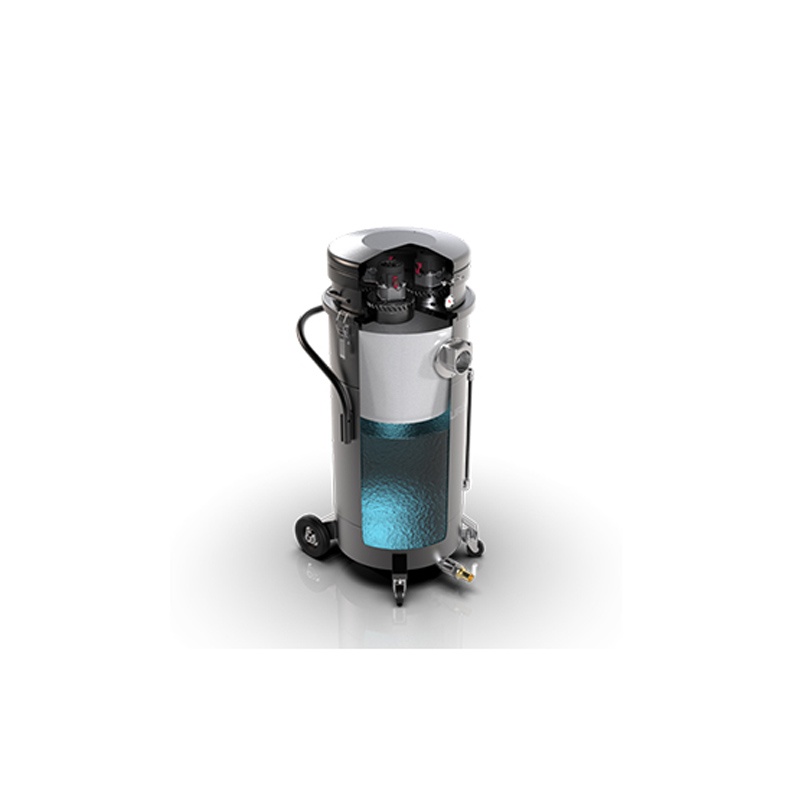

• Dual interchangeable liquid/solid interchangeable filtration system
• Easy to move steel collection unit with 4 solid wheels
• Liquid drain valve
• Power (Watt-CP): 2.600 W - 3,5 HP
• Voltage V|Hz: 230|50/60
• Max Vacuum m Bar 250
• Air flow intake m³/h: 380
• Inlet diameter: 70 Ø
• Noise level: 72 dB(A)
• Container capacity: 130 L
• Drain valve
• Dimensions: 580 x 530 mm
• Height: 1160 mm
• Weight: 38 Kg
• Liquid filter included
• PPL liquid filter material: polypropylene
• Solid filter material: polyester textile bag

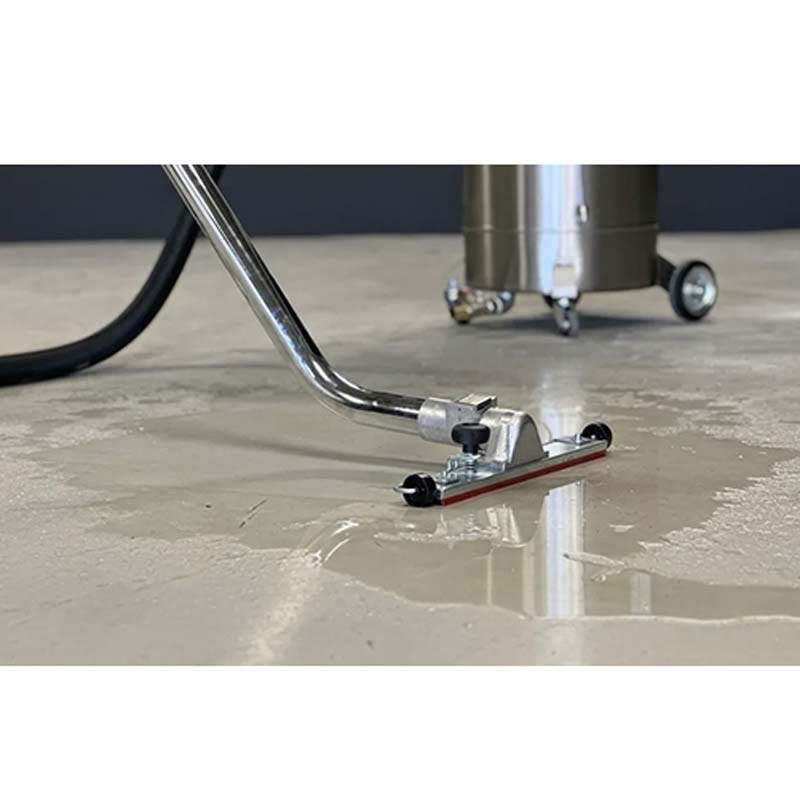

• Wet & Dry kit Ø40 included
